Polycarbonate Tubes

The polycarbonate tubes manufactured by PTH GROUP combine mechanical strength, dimensional stability, and excellent optical properties, offering a reliable solution for applications requiring both robustness and transparency.
Through continuous research and the use of advanced extrusion technologies, PTH ensures high-quality products characterized by surface uniformity and homogeneous light distribution.
The company’s technical department is dedicated to the development of the most high-performance materials, including special polycarbonates with anti-UV or flame-retardant (V0) treatments, ideal for use in sectors such as lighting, construction, automotive, and technical furniture.
Available in outer diameters ranging from 4 mm to 300 mm, the polycarbonate tubes can be customized in different finishes and colors, while maintaining high transparency and impact resistance.
Within the PTH GROUP showroom, samples are available for immediate shipment, allowing customers to directly evaluate the finish, quality, and optical performance of the material, ensuring the most suitable solution for every design requirement.

Available Diameters

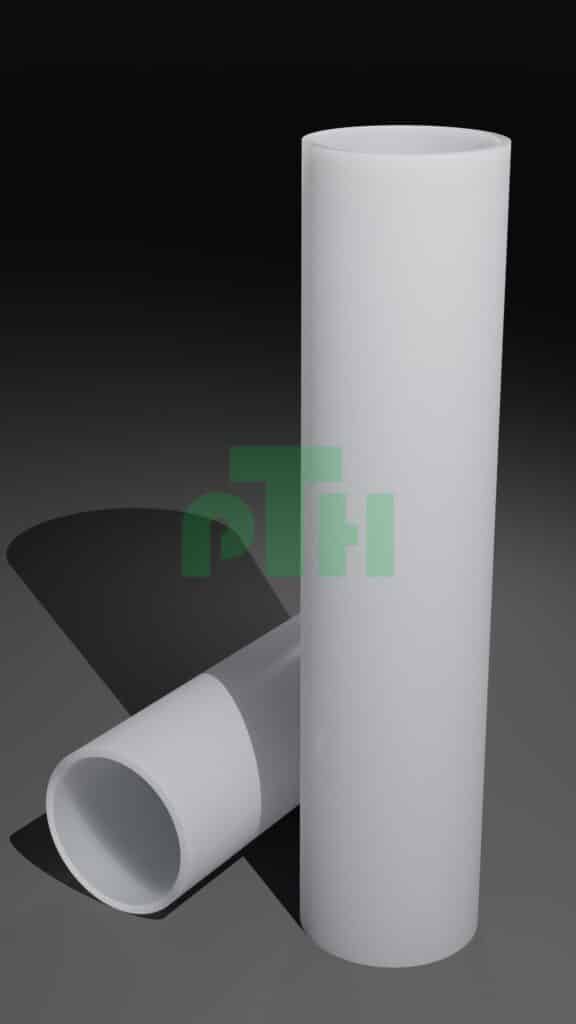

PC SBB Tube (off)

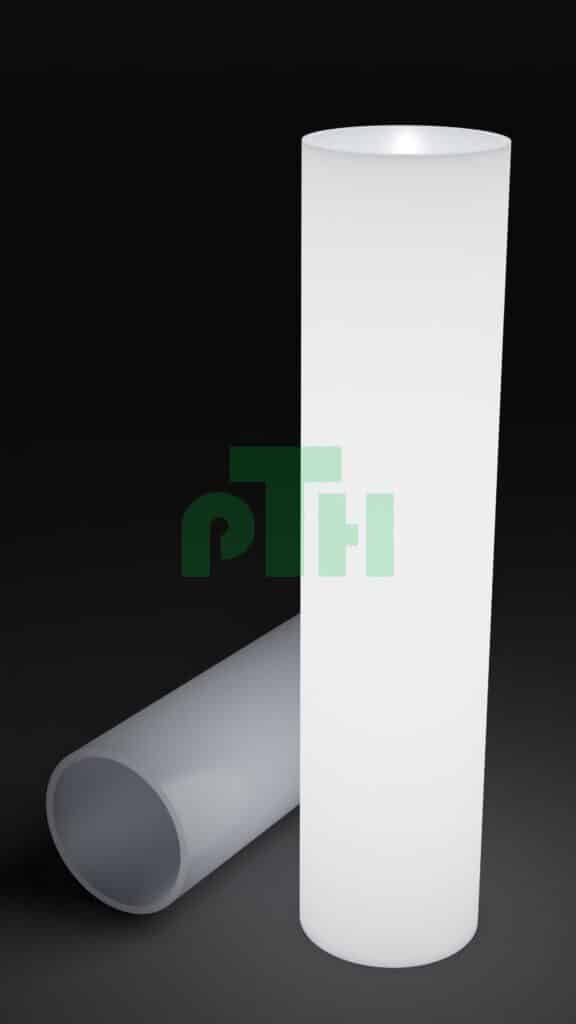

PC SBB Tube (on)

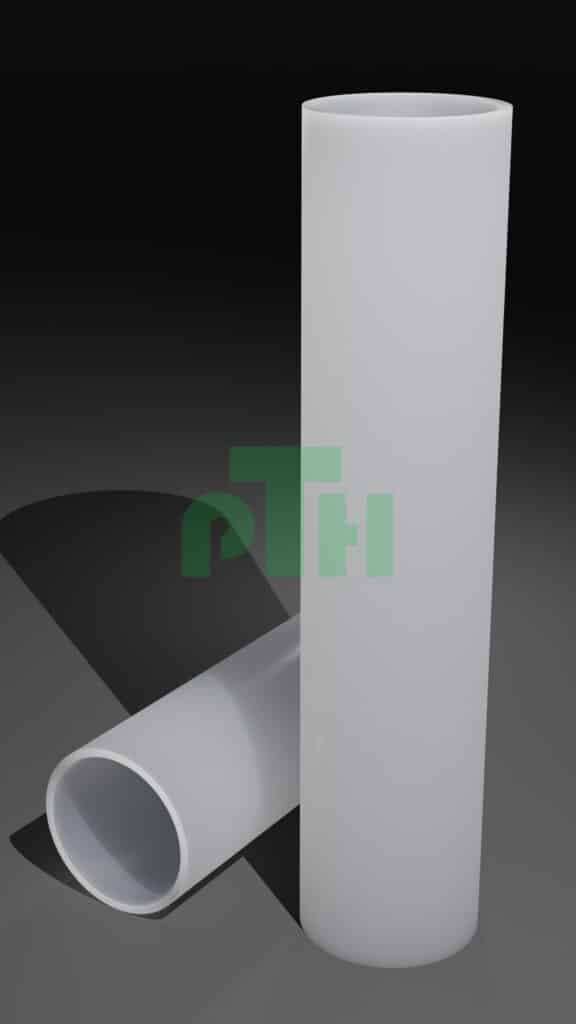

PC OPALE Tube (off)

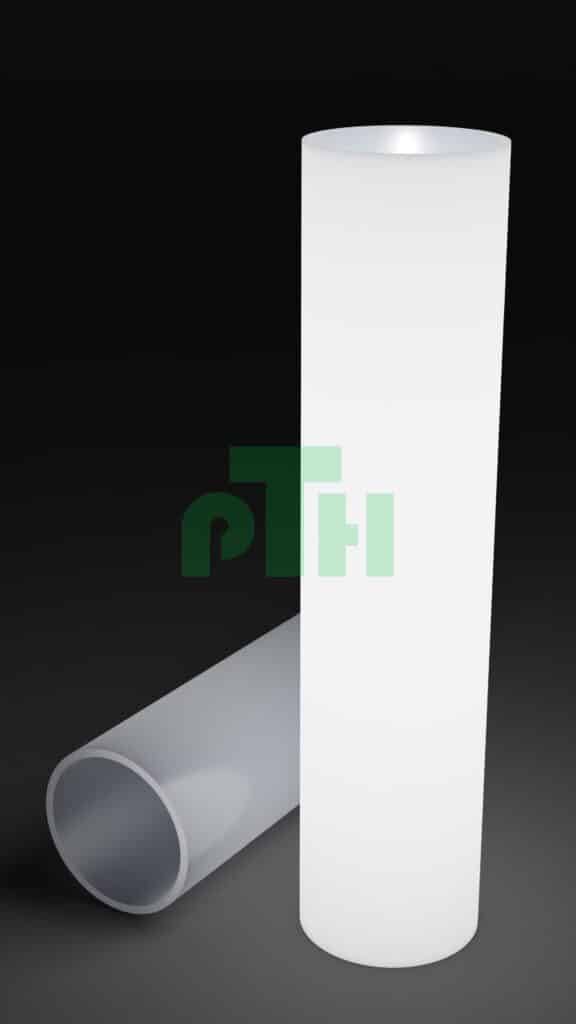

PC OPALE Tube (on)

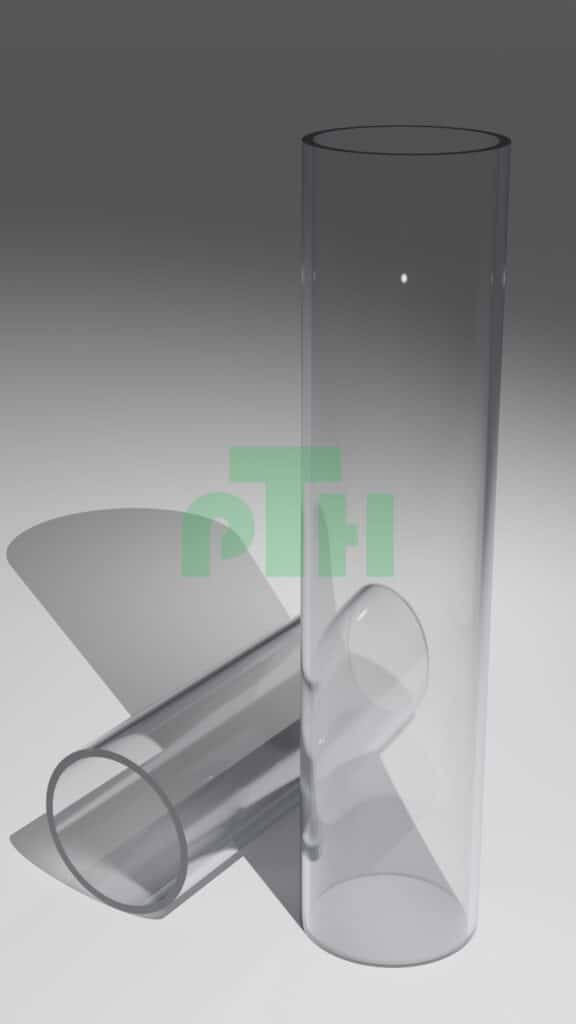

PC CLEAR Tube (off)

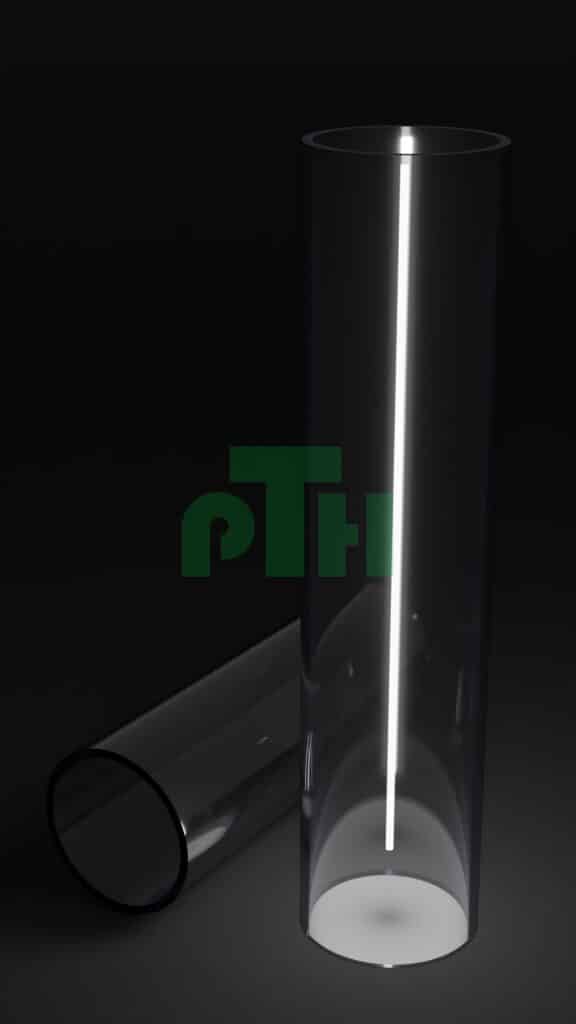

TUBO PC CLEAR (acceso)

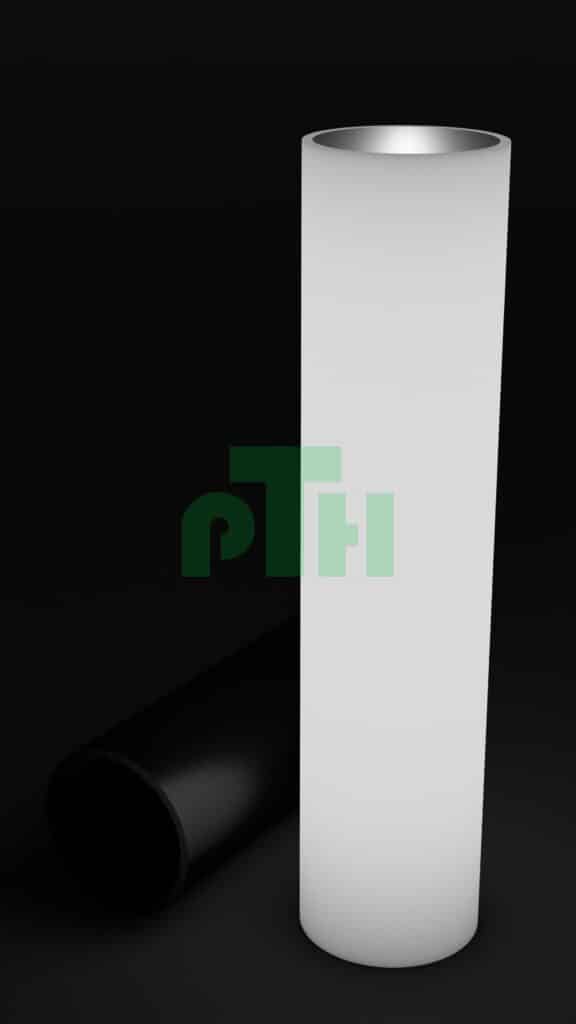

PC BW Tube (on)

PC BW Tube (on)

Polycarbonate Tubes

Polycarbonate Tubes are extruded with transparent, opal, satin, colored, prismatic, and co-extruded finishes. They feature UV stabilization, high impact resistance, and high-temperature resistance.

Upon request, we produce V0 FLAME RETARDANT Polycarbonate Tubes, primarily used in the transportation, automotive, and public building sectors, as well as Antibacterial Polycarbonate Tubes, Food-Grade (Food Contact use), Medical tubes, and UV Co-Extruded tubes.

Polycarbonate tubes are available in a wide range of outer diameters, ranging from 4 mm to 300 mm.

Available Diameters

Technical Properties of Polycarbonate Tubes

  • Excellent light transmission value
  • UV stabilization
  • Homogeneous light diffusion
  • Flame retardant propagation
  • Excellent fire resistance
  • UL94 V2 and UL94 V0 certification
  • High mechanical strength
  • High impact resistance
  • Chemical resistance
  • Tensile and yield strength
  • Resistance to high temperatures

Polycarbonate Tube Applications

  • Tubes for Lighting
  • Tubes for LED
  • Tubes for the Food and Medical Industry
  • Tubes for Railway Stations and Airports
  • Tubes for Refrigeration and Greenhouses
  • Tubes for Oil and Gas

Available Diameters – Polycarbonate Tubes

*Also available with internal prismatic structure.
Wall thickness and other diameters available upon request.

**Indicative, but may vary depending on thickness.

Outer - Ø in mm
 Min. production volume (m)
4
 2000
4,7
 2000
5
 2000
6
 1500
7
 1500
8
 1500
9
 1500
9,5
 1500
10
 1500
11
 1000
12
 1000
13
 1000
14
 1000
15
 1000
15,5
 1000
16
 1000
17
 1000
18
 1000
19
 1000
20
 1000
20,5
 1000
21
 1000
22
 1000
23
 1000
24
 1000
25
 1000
25,4
 1000
26
 1000
27
 1000
28*
 1000
30*
 1000
32*
 1000
32,5*
 1000
33*
 1000
34*
 1000
35*
 1000
36*
 1000
38*
 1000
40*
 500
42,5*
 500
44*
 500
45*
 500
50*
 500
52*
 500
56*
 500
59*
 500
60*
 500
63*
 500
64*
 500
65*
 500
66*
 500
67*
 500
68*
 500
70*
 250
75*
 250
78*
 250
80*
 250
83*
 250
84*
 250
90*
 250
95*
 250
96*
 250
100*
 250
110*
 250
120*
 250
125
 250
130
 250
133
 250
134
 250
140
 250
145
 250
150
 250
152
 250
160
 250
170
 250
178
 250
180
 250
185
 250
200
 250
230
 250
240
 250
250
 250
300
 250

Customized Processing and Tailored Packaging

PTH can meet customer requests by performing both special processing and custom applications and packaging on demand.
Discover our products
  • N

    Precise cutting
  • N

    Drilling*
  • N

    Prototyping
  • N

    Protective coating application
  • N

    Double-sided adhesive application
  • N

    Special packaging

* Only for PC and subject to approval by the technical department
